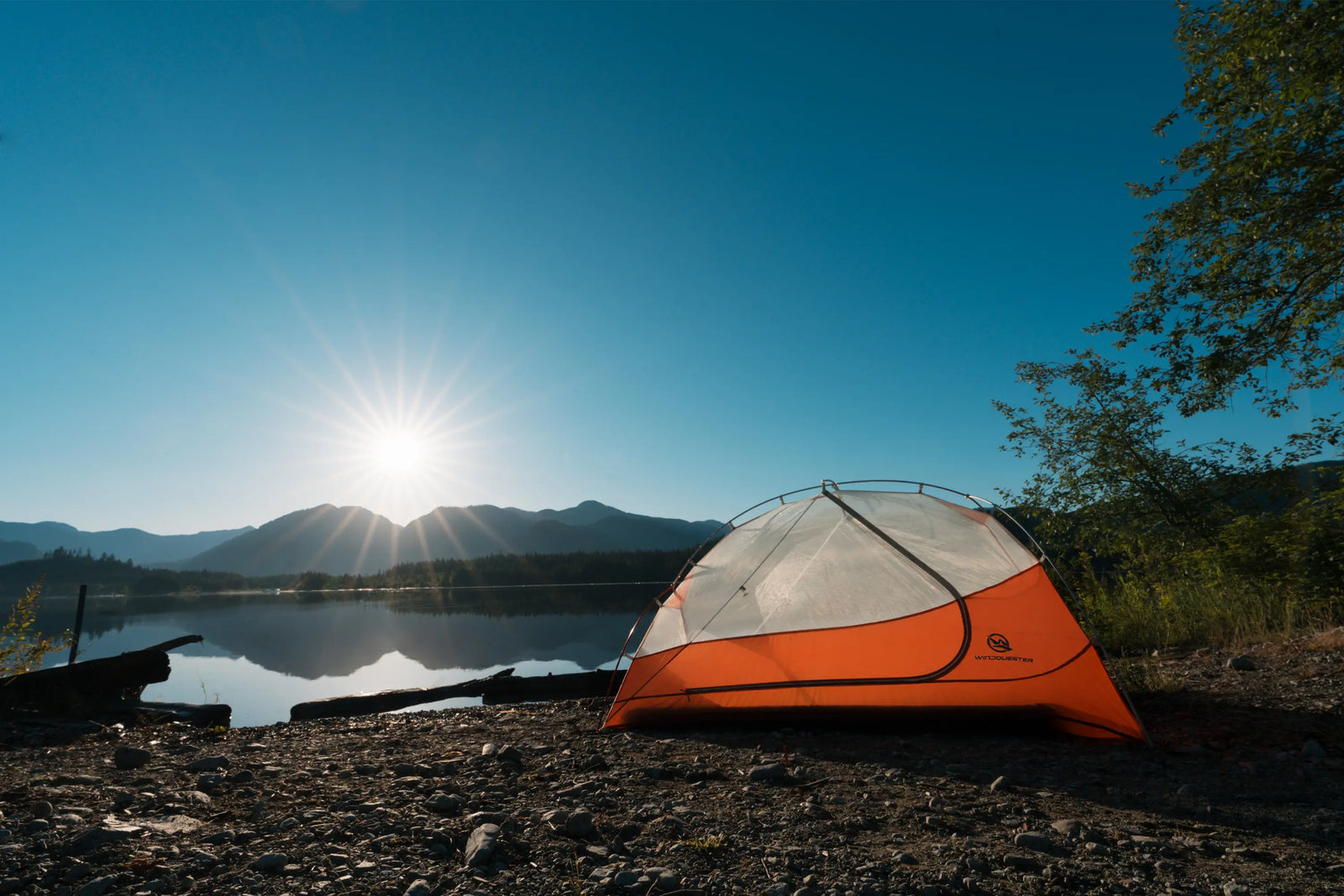

Built for Balance: The Structural Logic of the Horizon Lite 2 Pro
-
Introduction
A shelter is never just a stack of materials.
In real-world conditions, weight, weather protection, ventilation, interior space, and stability all come from how the structure is designed as a system.
The Horizon Lite 2 Pro is built around one idea: balance, not extremes.
-
Product Positioning
The Horizon Lite 2 Pro is a lightweight two-person backpacking tent designed for three-season use — including hiking, camping, multi-day trips, and bikepacking.
It is not an ultralight shelter pushed to the edge, nor a heavy expedition tent.
It sits in between.
It is designed for users who want to reduce weight without giving up structure, space, or real-world reliability.
-
Double-Wall Structure and Head Vent Design
The Horizon Lite 2 Pro uses a classic double-wall structure: a rainfly and an inner tent.
The fly handles weather protection — rain, wind, and runoff. The inner tent defines the living space and manages airflow and comfort.
Separating these systems improves livability in wet or cold conditions, preventing direct contact with condensation and creating a stable air gap between layers.
At the head area, the inner tent includes a dedicated breathable window zone.
This area sits above the sleeping position and is designed to maintain airflow while reducing the chance of condensation forming and dripping directly into the sleeping area.
It’s a small structural detail, but it makes a noticeable difference in humid or high temperature swing environments.
-
Pole Structure (Refined Design)
The pole system is the core frame of the tent.
The Horizon Lite 2 Pro uses DAC FeatherLite™ NFL poles, but the structure has been refined beyond a standard ultralight layout.
Extra pre-bend has been added in the head section to distribute tension more evenly across the frame.
This improves stability in strong wind conditions, reducing top deformation and side sway.
We also improved how the fabric interfaces with the pole structure.
The curvature now aligns more naturally with fly tension, allowing wind loads to transfer more efficiently into the frame instead of creating stress concentration points.
This improves both durability and long-term structural stability.
The geometry is designed around three priorities:
-
usable headroom
-
stable sidewall angles
-
balanced fly tension
In lightweight design, the goal is not more material — it is better geometry.
-
Connection System - Easy Set Up
The way the poles connect to the tent body directly affects setup speed and structural consistency.
The Horizon Lite 2 Pro uses a clip-based inner tent system for fast attachment to the frame.
On the Pro version, we kept a clear color-coded system from the UL model, but upgraded the pole joints with a DAC spherical connector.
This makes pole assembly smoother and more intuitive, reducing resistance during setup and improving handling in cold or low-light conditions.
Once assembled, the system provides three key benefits:
First, setup becomes more intuitive and faster.
Second, load distribution across the tent body is more even.
Third, corner anchor points transfer tension cleanly into the ground system, completing a stable structural loop.
When the fly is correctly aligned, the vestibules, doors, vents, and drainage angles all fall into place as intended.
-
Fly Roll-Up System
The Horizon Lite 2 Pro uses a specially designed roll-up door system for the rainfly.
Compared to traditional roll-up methods, this design is simpler to operate and easier to manage in real conditions — especially when hands are cold or when setting up under fatigue.
In stable weather, the fly can be rolled up to increase ventilation, open the space, and improve entry and exit.
In rain or strong wind, it can be quickly closed again to restore full protection.
The system is designed for fast transitions between open and protected modes.
In addition, two reinforced loop points are integrated into the fly door.
These can be used as auxiliary guy-out points in severe weather, adding extra stability and redundancy when conditions get harsh.
-
Vestibules and Doors
The Horizon Lite 2 Pro features a dual-door, dual-vestibule layout, giving both users independent access and better gear separation.
Vestibules are used for storing shoes, packs, and wet gear, keeping the inner tent clean and dry.
Doors are positioned for easy entry and exit, especially in tight campsites or rainy conditions.
Beyond storage, vestibules also act as a buffer zone between the shelter and the outside environment, improving usability in bad weather.
-
Ventilation Path
Ventilation is created through multiple interacting elements: fly openings, roll-up doors, inner mesh zones, the head vent window, and the air gap between layers.
When the fly is rolled up, airflow increases significantly.
Inside, mesh and breathable zones guide air movement through the sleeping area.
The Pro version also increases footbox width by 5 cm compared to the UL version, creating more usable interior volume and improving air circulation between two occupants.
Condensation cannot be fully eliminated, but it can be managed through structure, airflow, and spacing.
-
Guyline and Stake System
Stability comes from a distributed load system rather than a single component.
The poles provide the main structure, the fly provides coverage, and guylines and stakes maintain overall tension.
Dyneema-core guylines reduce stretch and help maintain consistent tension.
DAC J-stakes provide reliable anchoring in varied terrain.
When properly tensioned, the system reduces fabric flutter and maintains a stable air gap between inner and outer layers.
-
Interior Livability
A two-person tent is not just about fitting two sleeping pads.
It is about whether two people can actually live in the space comfortably.
Interior design must account for sleeping space, sitting room, gear storage, and movement flow.
Pole geometry, sidewall shape, and vestibule layout all influence how the space feels in real use.
A good two-person tent should feel usable, not tight, once you’re inside.
-
Design Trade-offs
Every lightweight tent is a set of compromises.
More space means more weight.
More mesh improves ventilation but reduces wind protection and warmth.
More structural reinforcement improves stability but adds weight and complexity.
A roll-up fly improves flexibility but requires stronger structural integration.
The Horizon Lite 2 Pro is designed around balance — not extremes.
-
Conclusion
The Horizon Lite 2 Pro is a complete shelter system.
Its performance comes from the interaction between the fly, inner tent, head vent structure, pole geometry, connection system, roll-up fly design, vestibules, guylines, and stakes.
It is not built to win a single specification.
It is built to perform consistently in real three-season conditions — light enough to carry, stable enough to trust, and comfortable enough to live in.
