Built for Balance: Inside the Horizon Lite 2 Pro
Tent performance is shaped by more than weight alone.
When developing the Horizon Lite 2 Pro, the goal was not to simply make the lightest possible shelter. The focus was to build a balanced system across weight, waterproof protection, tear resistance, ventilation, wind stability, durability, and environmental responsibility.
The Horizon Lite 2 Pro uses a material and component package designed around that balance:
15D high-tenacity Ripstop nylon fly and floor, ≥2500mm PFAS-free Sil/PU coating, polyester micromesh and 15D Ripstop breathable inner fabric, DAC FeatherLite™ NFL poles, DAC J-Stakes, YKK zippers, and Dyneema® core guylines.
Rather than maximizing one single specification, the material choices are designed to support real backcountry use across a range of conditions.
1. Fly and Floor Fabric Selection
The Horizon Lite 2 Pro uses:
15D high-tenacity Ripstop nylon with ≥2800mm PFAS-free Sil/PU coating
for both the rainfly and tent floor.
For a lightweight backpacking tent, the fly and floor fabrics need to balance several demands at the same time: low weight, reliable waterproof protection, tensile strength, tear resistance, and abrasion tolerance in real campsite conditions.
The rainfly has to handle wind load, pole tension, and guyline tension. The floor has to deal with body weight, ground contact, friction, and uneven terrain.
Nylon offers a strong strength-to-weight ratio, which makes it well suited for lightweight backpacking shelters. Compared with standard 15D nylon, a Ripstop construction adds a reinforced grid pattern that helps limit tear propagation after localized damage.
Ripstop does not mean the fabric cannot be punctured or damaged. Its value is that, once a small tear or puncture occurs, the reinforced grid helps reduce the risk of that tear spreading further.
This is especially important for the fly and floor. These are high-stress areas that must remain light while still offering enough strength margin for repeated setup, wind exposure, and ground contact.
Based on comparable fabric test data, the 15D high-tenacity Ripstop nylon used in the Horizon Lite 2 Pro shows:
Approximately 45.3% higher tensile strength Approximately 85% higher tear strength
compared with standard 15D nylon fabric.
Higher tensile strength means the fabric has better resistance to overall pulling forces from pole tension, guyline tension, and wind load.
Higher tear strength means that if the fabric is nicked by a branch, rock, or sharp object, the risk of the tear continuing to spread is reduced.
For this reason, the Horizon Lite 2 Pro does not use an ultra-minimal lower-denier fabric for the fly and floor. Instead, it uses a 15D Ripstop nylon that provides a more balanced relationship between weight and mechanical strength.
2. Sil/PU Coating: Balancing Waterproofing, Flexibility, and Seam Treatment
Tent fabric is not naturally waterproof. The waterproof performance of a rainfly depends largely on the coating system applied to the fabric.
The Horizon Lite 2 Pro uses a PFAS-free Sil/PU coating.
A PU coating, or polyurethane coating, helps create a stable waterproof layer and supports seam waterproofing.
A silicone coating helps improve fabric flexibility and tear resistance. For lightweight nylon fabrics, silicone coating can help maintain a softer hand feel while supporting overall durability.
A Sil/PU coating combines the advantages of both approaches. The silicone side supports flexibility and tear resistance, while the PU side helps provide a reliable waterproof layer and more dependable seam treatment.
For a lightweight two-person backpacking tent, this coating structure offers a practical balance between waterproof protection, fabric flexibility, tear resistance, and structural reliability.
3. The Trade-Off Between Waterproof Rating and Fabric Strength
Waterproof performance is not just a number.
For lightweight tents, waterproof rating needs to be considered together with fabric weight, flexibility, tear resistance, packability, and long-term usability. A thicker coating can increase waterproof numbers, but it can also affect fabric feel, weight, packed size, and handling.
The Horizon Lite 2 Pro has a waterproof rating of ≥2800mm. This level is suitable for most three-season backpacking, camping, and extended rain conditions, while still preserving the flexibility and tear resistance expected from a lightweight shelter fabric.
Overall waterproof performance also depends on structural design. Fly tension, drainage angles, seam construction, vestibule coverage, and the spacing between the fly and inner tent all contribute to how a tent performs in rain.
For backpackers looking for a rain-ready backpacking tent, the key is not only the waterproof rating of the fabric, but also how the full shelter manages water over time.
4. PFAS-Free Material Direction
PFAS refers to a group of fluorinated chemicals historically used in water-, oil-, and stain-resistant treatments. Because of their environmental persistence, the outdoor industry has been moving toward PFAS-free material solutions.
Outdoor gear is closely connected to the natural environments where it is used. Material selection therefore affects not only performance in the field, but also the environmental impact of the product over its lifecycle.
The Horizon Lite 2 Pro uses PFAS-free Sil/PU coating and PFAS-free DWR. For backpackers looking for a PFAS-free backpacking tent, this approach reduces reliance on fluorinated treatments while maintaining practical weather protection.
PFAS-free solutions involve trade-offs, but they represent an important direction in the development of modern outdoor equipment.
5. Full-Tent Rain Testing: Waterproofing Beyond Fabric Specs
A hydrostatic head test can show how a fabric performs on its own. But real tent waterproofing depends on the entire shelter system.
Fly tension, seam construction, vestibule coverage, zipper placement, fly-to-inner spacing, floor structure, and drainage angles all affect waterproof performance in actual use.
For this reason, the Horizon Lite 2 Pro was tested not only at the fabric level, but also as a complete tent.
Under a 1000mm / 0.25 PSI rain test, the tent was tested for 7 hours and 30 minutes, with the interior remaining dry.
This test evaluates how the fly, coating, seams, vestibules, zippers, floor, and overall structure work together under sustained rain conditions.
For users comparing waterproof ratings or wondering whether a backpacking tent is ready for extended rain, full-tent testing provides a more practical view than fabric numbers alone.
6. Inner Tent: Polyester Micromesh and DWR Breathable Fabric
The Horizon Lite 2 Pro inner tent uses:
15D polyester micromesh / 15D Ripstop breathable fabric with PFAS-free DWR
This inner tent combination is designed to balance ventilation, condensation management, wind protection, warmth, and weight.
Mesh improves airflow. It allows air to move more freely through the inner tent, helping reduce stuffiness and lowering the chance of moisture buildup around the sleeping area. In warm, humid, or high day-night temperature swing conditions, ventilation plays an important role in managing condensation risk.
Breathable fabric provides more coverage than mesh. It can improve wind protection and reduce the cold, drafty feeling that may occur when airflow enters below the rainfly.
The 15D Ripstop breathable fabric in the Horizon Lite 2 Pro uses a PFAS-free DWR treatment. The breathable fabric allows air and water vapor to move, helping reduce a damp interior feel, while the DWR treatment helps reduce water attachment on the fabric surface.
DWR treatment alone does not prevent condensation. Condensation is mainly caused by temperature differences, body moisture, ground moisture, and insufficient ventilation. Managing condensation depends on good airflow, proper fly-to-inner spacing, vent design, and campsite selection.
The role of the DWR breathable fabric is to work with the tent’s ventilation structure to help manage moisture and reduce the damp, clammy feeling that can occur when fabric absorbs moisture.
7. Wind Tunnel Testing: Stability Comes from the Whole Structure
Fabric strength is one part of wind performance, but it does not determine a tent’s wind stability by itself.
Wind performance comes from the combined behavior of the fly fabric, pole system, guyline layout, stake placement, tent geometry, and setup tension.
The Horizon Lite 2 Pro uses 15D high-tenacity Ripstop nylon, DAC FeatherLite™ NFL poles, DAC J-Stakes, and Dyneema® core guylines, and was tested under controlled wind tunnel conditions.
In controlled wind tunnel testing, the Horizon Lite 2 Pro reached a maximum tested wind speed of 62.6 mph, approximately 100 km/h.
This result reflects the combined effect of the fabric, frame, stakes, guylines, and shelter geometry. The Ripstop nylon provides a lightweight tear-resistant fabric base. The DAC pole system supports the structure. The DAC J-Stakes help anchor the shelter. The Dyneema® core guylines help maintain stable tension. The tent shape and guyline placement help distribute wind load.
8. Pole and Component Selection
Poles, stakes, zippers, and guylines all affect setup experience, structural stability, and long-term reliability.

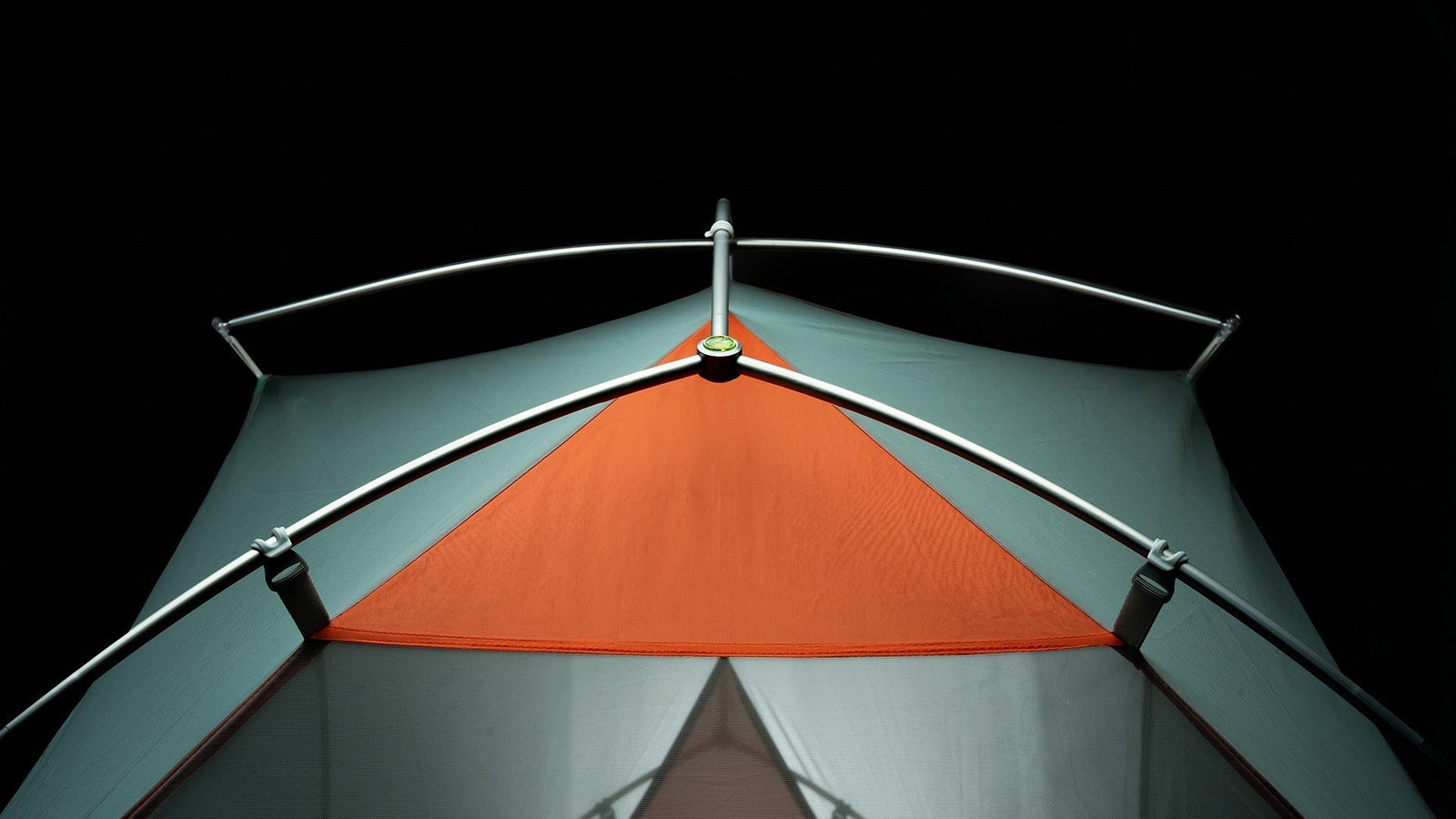

DAC FeatherLite™ NFL Poles
The pole system is the main structural support of the tent.
For a lightweight tent, poles need to balance low weight, stable support, reliable flex, and precise manufacturing. These factors affect setup feel, shelter geometry, and overall tension.
The Horizon Lite 2 Pro uses DAC FeatherLite™ NFL poles. The pole system works together with fly tension, stake placement, and guyline layout to support the tent structure.
DAC J-Stakes
Stakes are small components, but they play an important role in how securely a tent is anchored.
The Horizon Lite 2 Pro includes DAC J-Stakes, chosen for their balance of low weight, holding power, and durability. A stable stake system helps maintain proper fly tension, supports vestibule structure, and allows the guyline system to work more effectively in wind and rain.
YKK Zippers
Zippers are among the most frequently used parts of a tent.
Entering and exiting the tent, opening doors, and adjusting ventilation all depend on zipper performance. Smooth operation, stability, and long-term reliability all affect the user experience.
The Horizon Lite 2 Pro uses YKK zippers to support consistent daily operation and long-term usability.
Dyneema® Core Guylines
Guylines play an important role in wind stability.
For guylines, low stretch, high strength, and low weight are all important. If guylines stretch too much, tent tension can drop, the fly may flap more, and structural stability can be reduced.
The Horizon Lite 2 Pro uses Dyneema® core guylines to help maintain stable tension while keeping the shelter lightweight.
9. The Material Positioning of the Horizon Lite 2 Pro
The Horizon Lite 2 Pro is not designed around the lowest possible weight alone. Its material configuration is aimed at balancing lightweight performance with durability and weather protection.
Compared with standard 15D nylon fabric, the fly and floor fabric used in the Horizon Lite 2 Pro has approximately 45.3% higher tensile strength and approximately 85% higher tear strength. This provides additional strength margin for high-stress areas such as the rainfly and floor.
The tent also uses a ≥2800mm PFAS-free Sil/PU coating, DAC FeatherLite™ NFL poles, DAC J-Stakes, YKK zippers, and Dyneema® core guylines. Its structure has been evaluated through a 1000mm / 0.25 PSI, 7-hour-30-minute full-tent rain test and a 63 mph controlled wind tunnel test.
From a material standpoint, the Horizon Lite 2 Pro is positioned as a balanced, compact 2 person backpacking tent: weight-conscious, while still retaining waterproof protection, tear resistance, wind stability, and interior comfort.
10. Conclusion: Material Choice Is a Series of Trade-Offs
There is no single “best” tent material for every situation.
A higher waterproof rating can require a heavier coating. A thinner fabric may reduce weight but can also reduce durability margin. More mesh can improve ventilation but may reduce wind protection and warmth. Lighter structural components require higher material quality and more precise engineering.
The Horizon Lite 2 Pro material package is built around several key choices:
15D high-tenacity Ripstop nylon fly and floor provide a lightweight base with improved tensile and tear resistance.
Compared with standard 15D nylon fabric, tensile strength is approximately 45.3% higher and tear strength is approximately 85% higher.
The ≥2800mm PFAS-free Sil/PU coating balances waterproof protection, flexibility, and environmental direction.
The 1000mm / 0.25 PSI, 7-hour-30-minute full-tent rain test evaluates dry interior performance under sustained rain conditions.
The 63 mph controlled wind tunnel test evaluates how the structure, poles, stakes, guylines, and fabric work together under wind load.
The polyester micromesh and 15D DWR breathable fabric inner tent balances airflow, condensation management, wind protection, and moisture control.
DAC FeatherLite™ NFL poles, DAC J-Stakes, YKK zippers, and Dyneema® core guylines support structural reliability, secure anchoring, and long-term usability.
Overall, the Horizon Lite 2 Pro is designed around a balanced material system rather than a single headline specification. Its material choices are intended to support real backpacking use across changing weather, varied campsites, and repeated field use.
